Aluminum Drywall Trim / Reveal Bead 1" x 5/8" Primed for Painting SWR-100-063 / 92" Lengths (7'-8")
92" stocked length, cut for ground shipping.
In stock, ships in 1-3 business days.
Custom orders, freight and international: (301) 937-4383
| Part number | SWR-100-063 |
|---|---|
| Profile | Reveal Bead 1" x 5/8" |
| Material | Aluminum · Softforms®, primed |
| Length | 92" (7'-8") |
| Equivalents | Fry Reglet DRM-625-100, Gordon Final Forms 510-5/8, Flannery DWR-625-100 |
Request custom length
Send your required length. Freight shipped. We'll reply with a quote.
Cross Reference
Product Number Equivalents
| Fry Reglet DRM-625-100 |
| Gordon Final Forms 510-5/8 |
| Flannery DWR-625-100 |
Installation

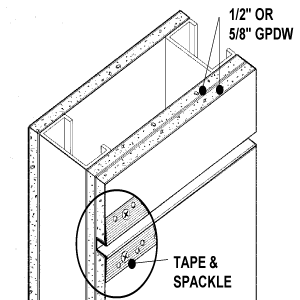

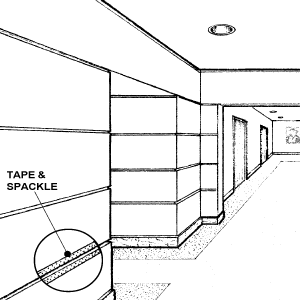

Installation Detail
Specification
Product Description

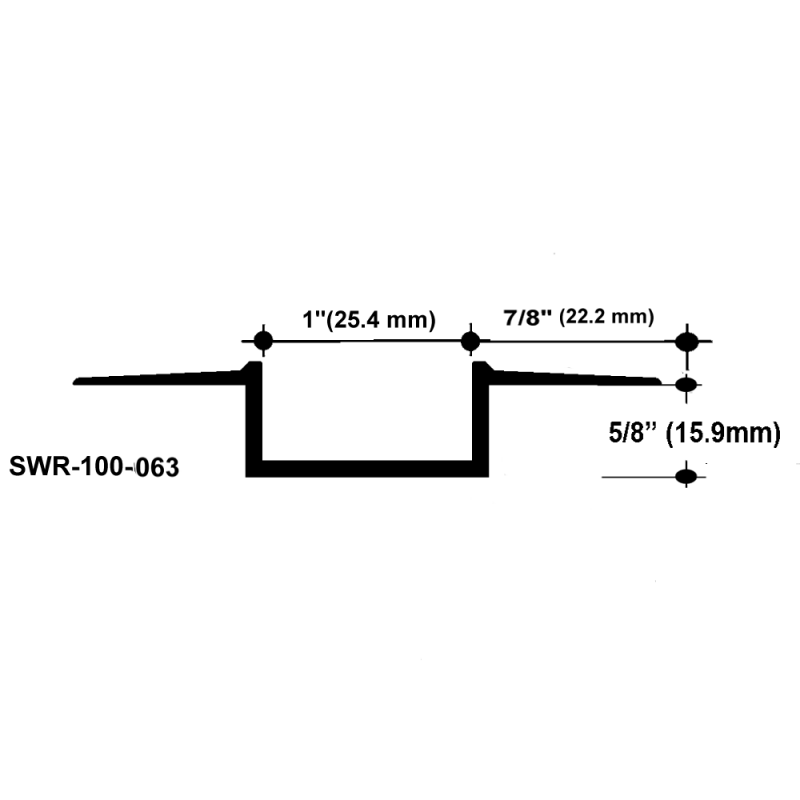

The Softforms® extruded aluminum profile SWR-100-063, 1" wide X 5/8" deep Reveal Bead. This profile has a continuous integral fin for surface contact to conventionally installed gypsum drywall. The fin is 7/8" wide and is tapered to the edge. The tapered fins are punched with staggered holes to accept standard screw fastening. A Series of continuous grooves are extruded into the face of the fins and provide a greater bonding surface. The Softforms® extruded aluminum profiles are factory primed painted with an etched corrosion-resistant primer compatible with materials used in conjunction with commercial interiors, i.e.: joint compound, latex and enamel paints and wall covering adhesives. Used with 5/8" Drywall.
Product Number Equivalents: Fry Reglet DRM-625-100, Gordon Final Forms 510-5/8, Flannery DWR-625-100
Ordering FAQ
Quick Answers
Why 92 inches instead of 10 feet?
We cut every profile down from its 10' mill length to 92" (7'-8") before it ships. A 92" piece qualifies for FedEx Ground; a 10' piece has to move by LTL freight, which costs far more for a small order.
Do you offer custom lengths?
Yes, by request. Use the Request Custom Length form (or call (301) 937-4383) with the length you need; lengths other than 92" ship by freight truck rather than ground parcel, and we'll follow up with a price and freight quote.
What is your return policy?
Return the product within 10 days of receiving it for a refund of the purchase price less shipping charges and a 20% restocking fee; call (301) 937-4383 first so we can authorize the return. Full terms are on the Shipping & Returns page.
Explore More Profiles
Hundreds of Profiles Available Beyond Online
We also have hundreds of profiles in stock not shown on our online store, so if you need something you don't see here online, call us or email us, we will be glad to assist you in finding what you need from our wide variety of stock and custom fabricated shapes.
