Aluminum Drywall Trim / Z Shadow Bead 1/8" x 5/8" Primed for Painting 92" Lengths

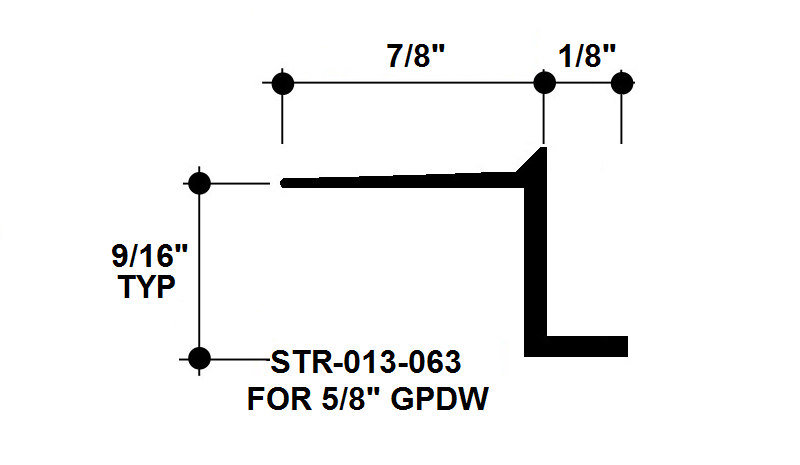

The Softforms® extruded aluminum profile STR-013-063, 1/8" wide X 5/8" deep. The "Z" Shadow Bead used to trim around door jambs, window frames and base molding. This profile has a continuous integral fin for surface contact to conventionally installed gypsum drywall. The fin is 7/8" wide and is tapered to the edge. The tapered fins are punched with staggered holes to accept standard screw fastening. A Series of continuous grooves are extruded into the face of the fins and provide a greater bonding surface. The Softforms® extruded aluminum profiles are factory primed painted with an etched corrosion-resistant primer compatible with materials used in conjunction with commercial interiors, i.e.: joint compound, latex and enamel paints and wall covering adhesives. Used with 5/8" Drywall.

Product Number Equivalents: Fry Reglet DRMZ-625-1250

FOR PRODUCT DATA SHEET CLICK HERE.

FOR PRODUCT SPEC SHEET CLICK HERE.
